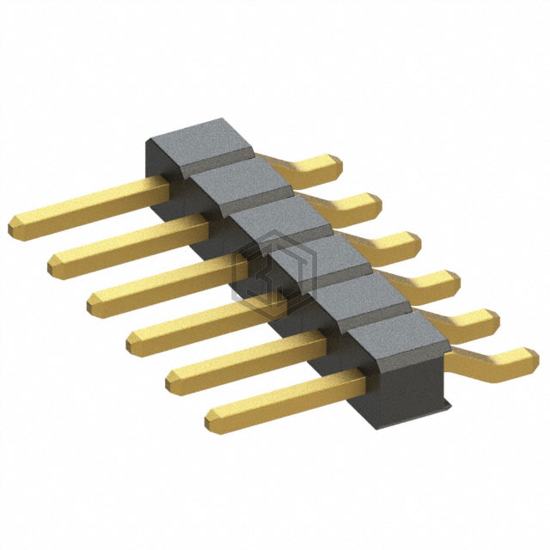

CONN HEADER SMD R/A 6POS 2MM
M22-5330605 is a Rectangular Connectors - Headers, Male Pins manufactured by Harwin Inc.. CONN HEADER SMD R/A 6POS 2MM. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -40°C ~ 105°C, contact material Brass, current rating (amps) 2A per Contact.
In Stock: 960
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header, Cuttable |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.165" (4.20mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.079" (2.00mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | - |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA6T), Nylon 6T |
| Features | - |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 2A per Contact |
| Voltage Rating | - |
Submit your RFQ for M22-5330605 and get a quote within 24 hours.
