CONN HDR 8.5MM VERT PCB 4POS

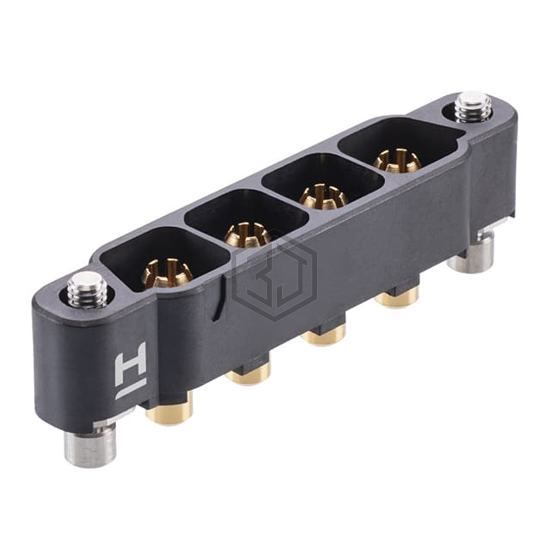

KA1-MV10405M2 is a Rectangular Connectors - Headers, Male Pins manufactured by Harwin Inc.. CONN HDR 8.5MM VERT PCB 4POS. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 150°C, contact material Beryllium Copper, current rating (amps) 60A per Contact.
In Stock: 95
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin, Power |
| Pitch - Mating | 0.335" (8.50mm) |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Threaded |
| Contact Length - Mating | - |
| Contact Length - Post | 0.177" (4.50mm) |
| Overall Contact Length | - |
| Insulation Height | 0.374" (9.50mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Gold |
| Contact Material | Beryllium Copper |
| Insulation Material | Polyphenylene Sulfide (PPS) |
| Features | Mating Flange, Mounting Flange |
| Operating Temperature | -65°C ~ 150°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 60A per Contact |
| Voltage Rating | - |
Submit your RFQ for KA1-MV10405M2 and get a quote within 24 hours.
