CONN PC PIN CIRC 0.038DIA TIN

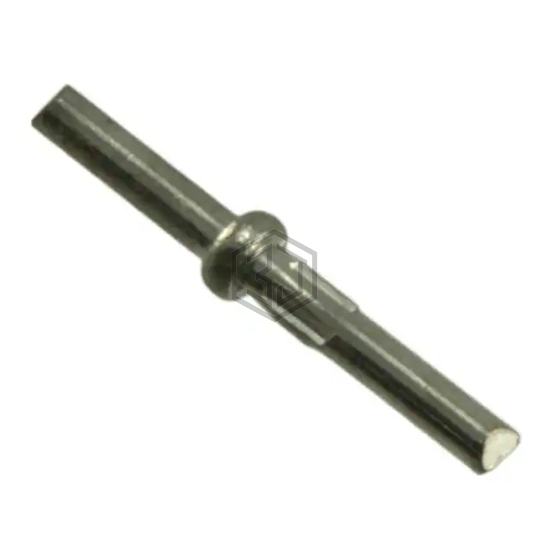

H3151-01 is a Terminals - PC Pin, Single Post Connectors manufactured by Harwin Inc.. CONN PC PIN CIRC 0.038DIA TIN. Key specifications: mounting type Through Hole, contact material Brass, termination Swage.
In Stock: 2,309
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Terminal Type | PC Pin |
| Terminal Style | Double End, Pin Retention |
| Pin Size - Above Flange | 0.038" (0.97mm) Dia |
| Pin Size - Below Flange | - |
| Length - Above Flange | 0.157" (3.99mm) |
| Length - Below Flange | 0.220" (5.59mm) |
| Length - Overall | 0.394" (10.00mm) |
| Flange Diameter | 0.063" (1.60mm) |
| Mounting Hole Diameter | 0.039" ~ 0.041" (0.99mm ~ 1.04mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Insulation | Non-Insulated |
| Board Thickness | 0.063" ~ 0.094" (1.60mm ~ 2.39mm) |
| Contact Material | Brass |
| Contact Finish | Tin |
| Contact Finish Thickness | 300.0µin (7.62µm) |
Submit your RFQ for H3151-01 and get a quote within 24 hours.
