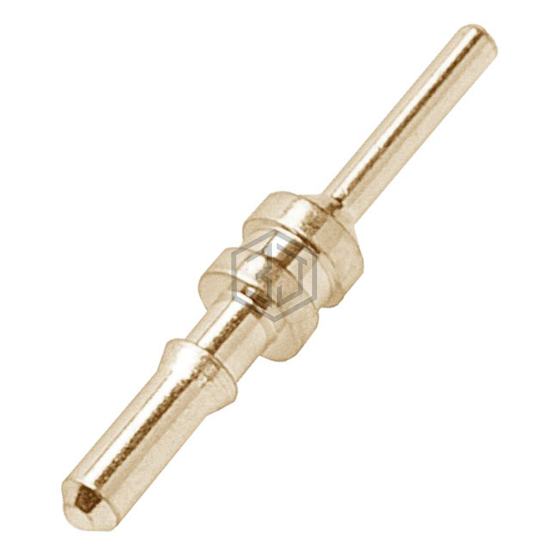

CONN PC PIN CIRC 0.020DIA GOLD
H2475-05 is a Terminals - PC Pin, Single Post Connectors manufactured by Harwin Inc.. CONN PC PIN CIRC 0.020DIA GOLD. Key specifications: mounting type Through Hole, contact material Brass, termination Swage, Barbed.
In Stock: 5,188
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | PC Pin |
| Terminal Style | Double End |
| Pin Size - Above Flange | 0.020" (0.51mm) Dia |
| Pin Size - Below Flange | 0.030" (0.76mm) Dia |
| Length - Above Flange | - |
| Length - Below Flange | 0.118" (3.00mm) |
| Length - Overall | 0.287" (7.29mm) |
| Flange Diameter | 0.050" (1.27mm) |
| Mounting Hole Diameter | 0.030" ~ 0.033" (0.76mm ~ 0.84mm) |
| Mounting Type | Through Hole |
| Termination | Swage, Barbed |
| Insulation | Non-Insulated |
| Board Thickness | 0.063" (1.60mm) |
| Contact Material | Brass |
| Contact Finish | Gold |
| Contact Finish Thickness | - |
