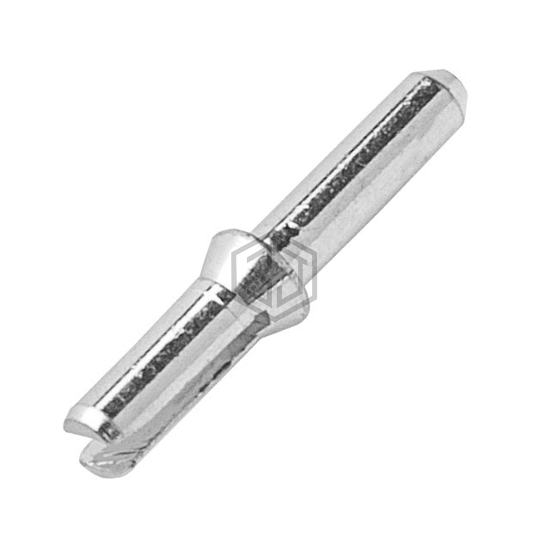

CONN PC PIN CIRC 0.039DIA TIN
H2474-01 is a Terminals - PC Pin, Single Post Connectors manufactured by Harwin Inc.. CONN PC PIN CIRC 0.039DIA TIN. Key specifications: mounting type Through Hole, contact material Brass, termination Swage.
In Stock: 6,410
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | PC Pin |
| Terminal Style | Single End, Slotted |
| Pin Size - Above Flange | 0.039" (0.99mm) Dia |
| Pin Size - Below Flange | - |
| Length - Above Flange | 0.157" (3.99mm) |
| Length - Below Flange | 0.108" (2.74mm) |
| Length - Overall | 0.295" (7.49mm) |
| Flange Diameter | 0.063" (1.60mm) |
| Mounting Hole Diameter | 0.036" ~ 0.041" (0.91mm ~ 1.03mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Insulation | Non-Insulated |
| Board Thickness | 0.031" ~ 0.126" (0.79mm ~ 3.20mm) |
| Contact Material | Brass |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
Submit your RFQ for H2474-01 and get a quote within 24 hours.
