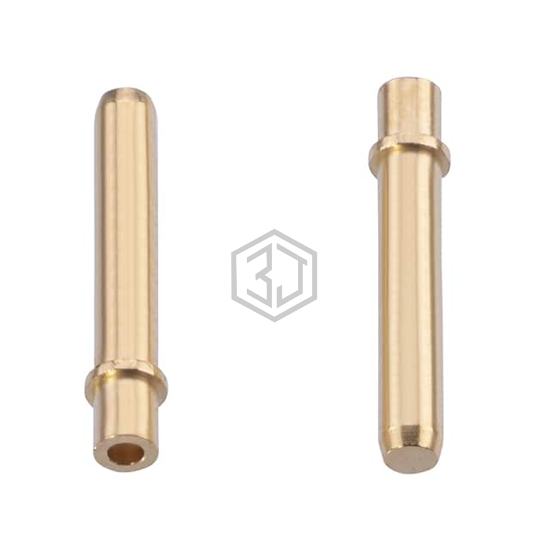

CONN PIN 1.75MM DIA GOLD 9.5MM
H2183-05 is a Terminals - PC Pin, Single Post Connectors manufactured by Harwin Inc.. CONN PIN 1.75MM DIA GOLD 9.5MM. Key specifications: mounting type Through Hole, contact material Brass, termination Swage.
In Stock: 585
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | PC Pin |
| Terminal Style | Single End |
| Pin Size - Above Flange | 0.070" (1.78mm) Dia |
| Pin Size - Below Flange | 0.070" (1.78mm) Dia |
| Length - Above Flange | 0.374" (9.50mm) |
| Length - Below Flange | 0.077" (1.95mm) |
| Length - Overall | 0.467" (11.86mm) |
| Flange Diameter | 0.089" (2.25mm) |
| Mounting Hole Diameter | 0.071" ~ 0.075" (1.80mm ~ 1.90mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Insulation | Non-Insulated |
| Board Thickness | 0.063" (1.60mm) |
| Contact Material | Brass |
| Contact Finish | Gold |
| Contact Finish Thickness | - |
Submit your RFQ for H2183-05 and get a quote within 24 hours.
