CONN PC PIN CIRC 0.041DIA TIN

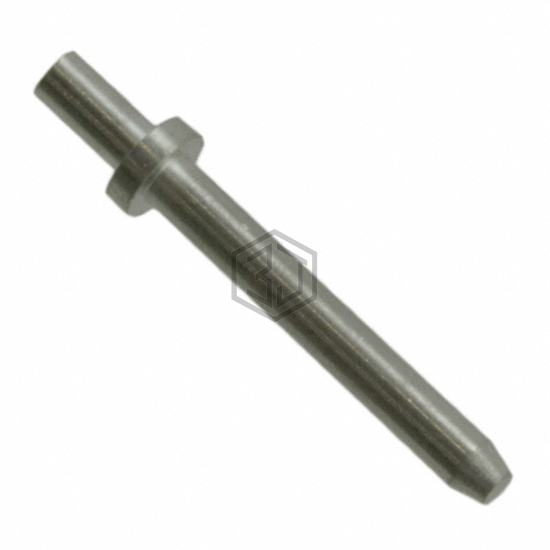

H2173-01 is a Terminals - PC Pin, Single Post Connectors manufactured by Harwin Inc.. CONN PC PIN CIRC 0.041DIA TIN. Key specifications: mounting type Through Hole, contact material Brass, termination Swage.
In Stock: 3,277
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | PC Pin |
| Terminal Style | Single End |
| Pin Size - Above Flange | 0.041" (1.04mm) Dia |
| Pin Size - Below Flange | - |
| Length - Above Flange | 0.300" (7.62mm) |
| Length - Below Flange | 0.082" (2.08mm) |
| Length - Overall | 0.402" (10.20mm) |
| Flange Diameter | 0.070" (1.77mm) |
| Mounting Hole Diameter | 0.041" ~ 0.045" (1.04mm ~ 1.14mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Insulation | Non-Insulated |
| Board Thickness | 0.063" (1.60mm) |
| Contact Material | Brass |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
Submit your RFQ for H2173-01 and get a quote within 24 hours.
