CONN PC PIN CIRC .64DIA TIN/NICK

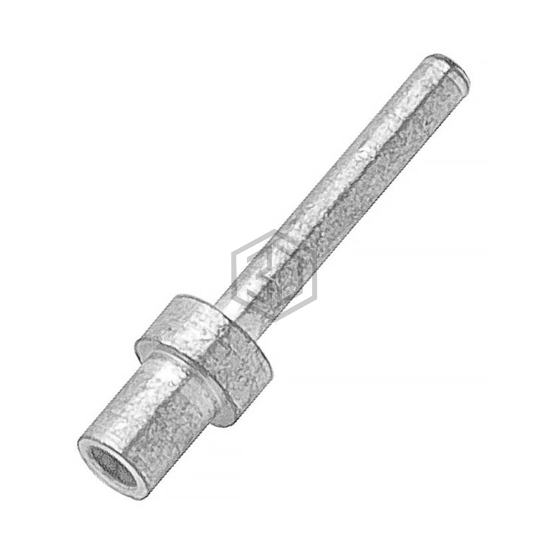

H2159-01 is a Terminals - PC Pin, Single Post Connectors manufactured by Harwin Inc.. CONN PC PIN CIRC .64DIA TIN/NICK. Key specifications: mounting type Through Hole, contact material Brass, termination Swage.
In Stock: 7,995
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | PC Pin |
| Terminal Style | Single End |
| Pin Size - Above Flange | 0.025" (0.64mm) Dia |
| Pin Size - Below Flange | - |
| Length - Above Flange | 0.165" (4.18mm) |
| Length - Below Flange | 0.051" (1.30mm) |
| Length - Overall | 0.240" (6.10mm) |
| Flange Diameter | 0.057" (1.45mm) |
| Mounting Hole Diameter | 0.042" ~ 0.045" (1.07mm ~ 1.14mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Insulation | Non-Insulated |
| Board Thickness | 0.031" (0.79mm) |
| Contact Material | Brass |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
Submit your RFQ for H2159-01 and get a quote within 24 hours.
