3J LIMITED
H2106B01
TERMINAL PIN

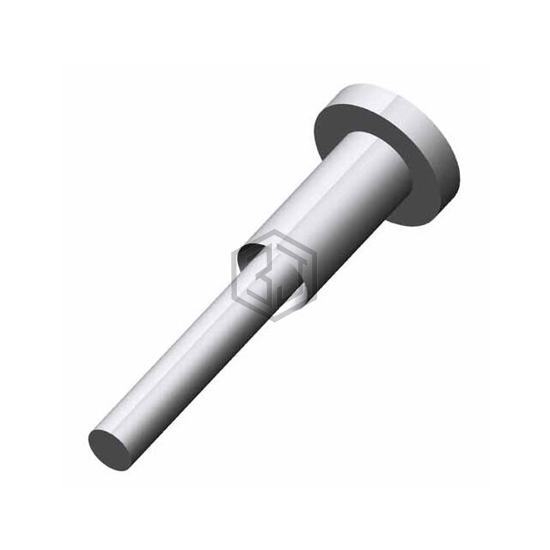

H2106B01 is a Terminals - PC Pin, Single Post Connectors manufactured by Harwin Inc.. TERMINAL PIN. Key specifications: mounting type Through Hole, contact material Brass, termination Solder.
In Stock: 7,319
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | PC Pin |
| Terminal Style | Single End |
| Pin Size - Above Flange | - |
| Pin Size - Below Flange | 0.032" (0.81mm) Dia |
| Length - Above Flange | - |
| Length - Below Flange | 0.285" (7.24mm) |
| Length - Overall | 0.305" (7.75mm) |
| Flange Diameter | 0.094" (2.39mm) |
| Mounting Hole Diameter | 0.052" ~ 0.056" (1.32mm ~ 1.42mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Insulation | Non-Insulated |
| Board Thickness | 0.094" (2.39mm) |
| Contact Material | Brass |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
Frequently Asked Questions
H2106B01 is a Terminals - PC Pin, Single Post Connectors manufactured by Harwin Inc.. TERMINAL PIN
The mounting type of H2106B01 is Through Hole.
The material of H2106B01 is Brass.
The termination type of H2106B01 is Solder.
