CONN PC PIN CIRC 0.032DIA TIN

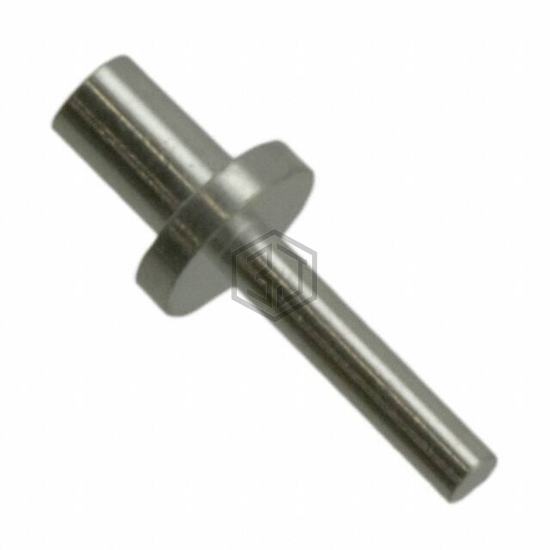

H2105A01 is a Terminals - PC Pin, Single Post Connectors manufactured by Harwin Inc.. CONN PC PIN CIRC 0.032DIA TIN. Key specifications: mounting type Through Hole, contact material Brass, termination Swage.
In Stock: 1,255
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | PC Pin |
| Terminal Style | Single End |
| Pin Size - Above Flange | 0.032" (0.81mm) Dia |
| Pin Size - Below Flange | - |
| Length - Above Flange | 0.156" (3.96mm) |
| Length - Below Flange | 0.083" (2.11mm) |
| Length - Overall | 0.259" (6.58mm) |
| Flange Diameter | 0.094" (2.39mm) |
| Mounting Hole Diameter | 0.052" ~ 0.056" (1.32mm ~ 1.42mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Insulation | Non-Insulated |
| Board Thickness | 0.063" (1.60mm) |
| Contact Material | Brass |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
