CONN PC PIN CIRC 0.038DIA TIN

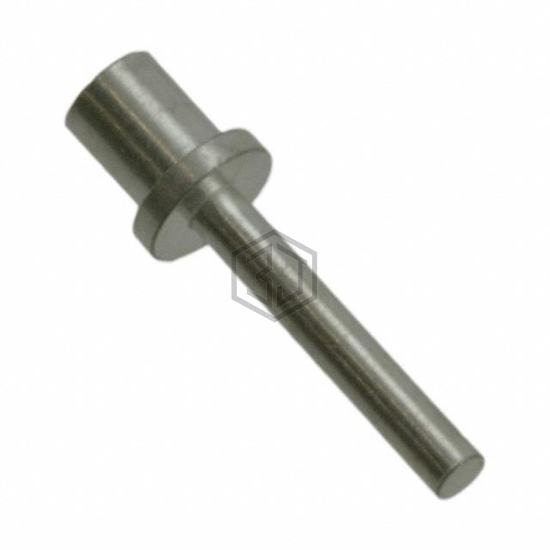

H2101A01 is a Terminals - PC Pin, Single Post Connectors manufactured by Harwin Inc.. CONN PC PIN CIRC 0.038DIA TIN. Key specifications: mounting type Through Hole, contact material Brass, termination Swage.
In Stock: 5,141
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | PC Pin |
| Terminal Style | Single End |
| Pin Size - Above Flange | 0.038" (0.97mm) Dia |
| Pin Size - Below Flange | - |
| Length - Above Flange | 0.237" (6.02mm) |
| Length - Below Flange | 0.078" (1.98mm) |
| Length - Overall | 0.335" (8.51mm) |
| Flange Diameter | 0.094" (2.39mm) |
| Mounting Hole Diameter | 0.070" ~ 0.074" (1.78mm ~ 1.87mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Insulation | Non-Insulated |
| Board Thickness | 0.063" (1.60mm) |
| Contact Material | Brass |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
Submit your RFQ for H2101A01 and get a quote within 24 hours.
