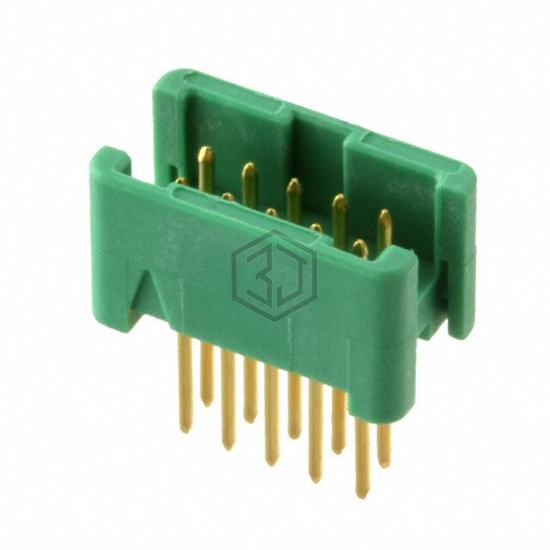

CONN HEADER VERT 10POS 1.25MM
G125-MV21005L0P is a Rectangular Connectors - Headers, Male Pins manufactured by Harwin Inc.. CONN HEADER VERT 10POS 1.25MM. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 150°C, contact material Phosphor Bronze, current rating (amps) 2A per Contact.
In Stock: 79
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.049" (1.25mm) |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.049" (1.25mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | - |
| Contact Length - Post | 0.177" (4.50mm) |
| Overall Contact Length | - |
| Insulation Height | 0.193" (4.90mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | - |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free |
| Features | Board Lock, Pick and Place |
| Operating Temperature | -65°C ~ 150°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Green |
| Current Rating (Amps) | 2A per Contact |
| Voltage Rating | - |
Submit your RFQ for G125-MV21005L0P and get a quote within 24 hours.
