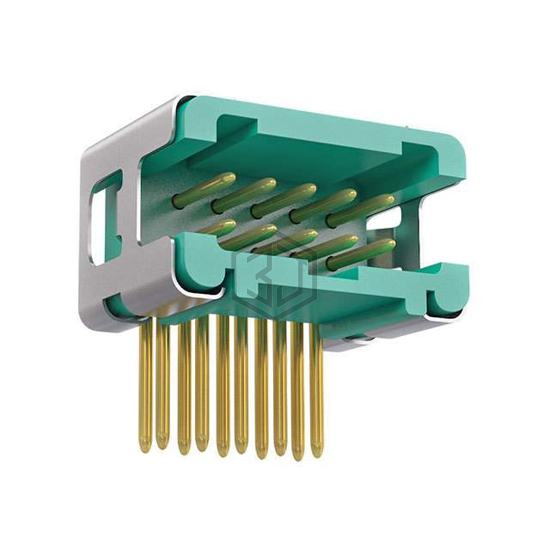

CONN HEADER R/A 10POS 1.25MM
G125-MH11005L7P is a Rectangular Connectors - Headers, Male Pins manufactured by Harwin Inc.. CONN HEADER R/A 10POS 1.25MM. Key specifications: mounting type Through Hole, Right Angle, operating temperature -65°C ~ 150°C, voltage rating 250V, contact material Phosphor Bronze.
In Stock: 200
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.049" (1.25mm) |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.049" (1.25mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | 0.130" (3.30mm) |
| Overall Contact Length | - |
| Insulation Height | 0.219" (5.56mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | - |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free |
| Features | Solder Retention |
| Operating Temperature | -65°C ~ 150°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Green |
| Current Rating (Amps) | 2A |
| Voltage Rating | 250V |
Submit your RFQ for G125-MH11005L7P and get a quote within 24 hours.
