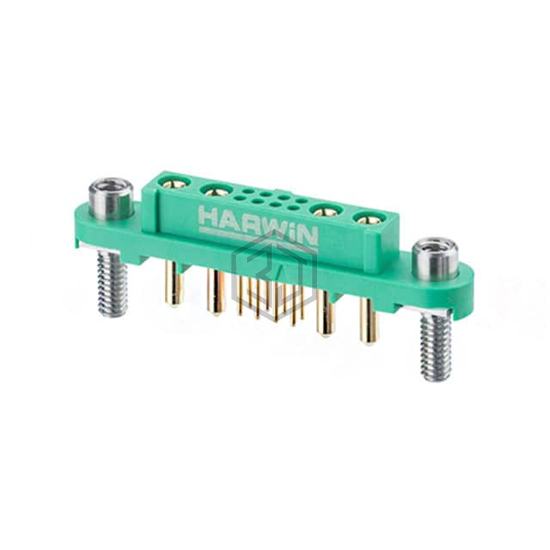

CONN F-HDR 4PWR 8SIG PCB VERT
G125-FV10805F3-2AB2ABP is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Harwin Inc.. CONN F-HDR 4PWR 8SIG PCB VERT. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 150°C, voltage rating 450V, current rating (amps) 2A, 10A.
In Stock: 70
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 12 (8 + 4 Power) |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.049" (1.25mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.049" (1.25mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Screw Lock |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Insulation Color | Green |
| Insulation Height | 0.207" (5.25mm) |
| Contact Length - Post | 0.118" (3.00mm) |
| Operating Temperature | -65°C ~ 150°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Gold |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Mating Flange, Mounting Flange, Pick and Place, Polarizing Key |
| Current Rating (Amps) | 2A, 10A |
| Voltage Rating | 450V |
Submit your RFQ for G125-FV10805F3-2AB2ABP and get a quote within 24 hours.
