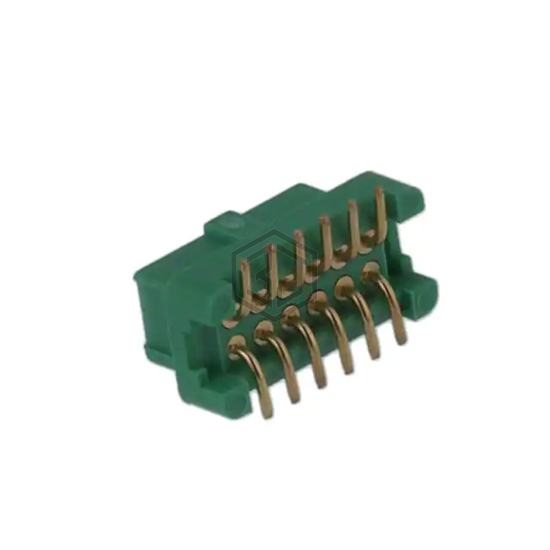

CONN RCPT 12POS 0.049 GOLD SMD
G125-FS11205L0R is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Harwin Inc.. CONN RCPT 12POS 0.049 GOLD SMD. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C, current rating (amps) 2A, termination Solder.
In Stock: 8,516
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.049" (1.25mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.049" (1.25mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Insulation Color | Green |
| Insulation Height | 0.207" (5.25mm) |
| Contact Length - Post | - |
| Operating Temperature | -65°C ~ 150°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Gold |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Pick and Place, Polarizing Key |
| Current Rating (Amps) | 2A |
| Voltage Rating | - |
