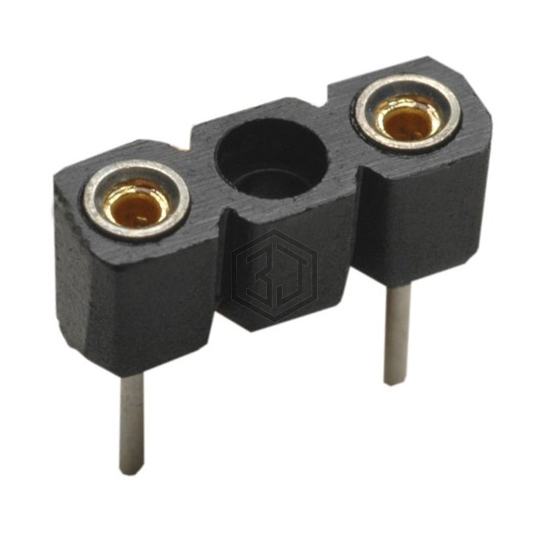

CONN IC DIP SOCKET 3POS GOLD
D2899-42 is a Sockets for ICs, Transistors manufactured by Harwin Inc.. CONN IC DIP SOCKET 3POS GOLD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, housing material Polyamide (PA), Nylon, Glass Filled, termination Solder.
In Stock: 2,505
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DIP, 0.3" (7.62mm) Row Spacing |
| Number of Positions or Pins (Grid) | 3 (1 x 3), 2 Loaded |
| Pitch - Mating | 0.200" (5.08mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Material - Mating | Beryllium Copper |
| Mounting Type | Through Hole |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - Post | 0.200" (5.08mm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 196.9µin (5.00µm) |
| Contact Material - Post | Brass |
| Housing Material | Polyamide (PA), Nylon, Glass Filled |
| Operating Temperature | -55°C ~ 125°C |
Submit your RFQ for D2899-42 and get a quote within 24 hours.
