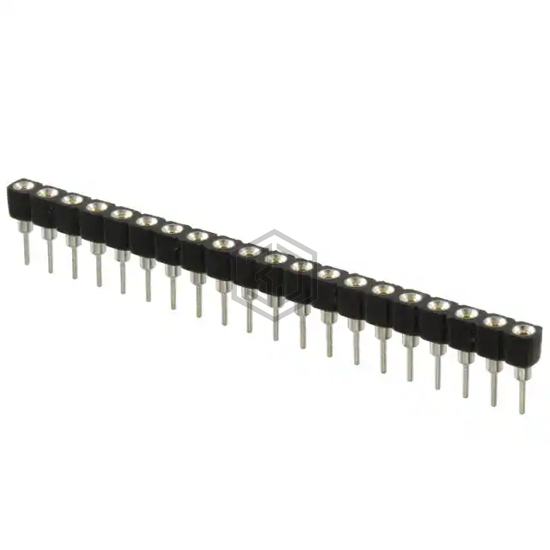

CONN SOCKET SIP 20POS GOLD
D01-9972042 is a Sockets for ICs, Transistors manufactured by Harwin Inc.. CONN SOCKET SIP 20POS GOLD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, housing material Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled, termination Solder.
In Stock: 12,860
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | SIP |
| Number of Positions or Pins (Grid) | 20 (1 x 20) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Material - Mating | Beryllium Copper |
| Mounting Type | Through Hole |
| Features | - |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 196.9µin (5.00µm) |
| Contact Material - Post | Brass |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Operating Temperature | -55°C ~ 125°C |
Submit your RFQ for D01-9972042 and get a quote within 24 hours.
