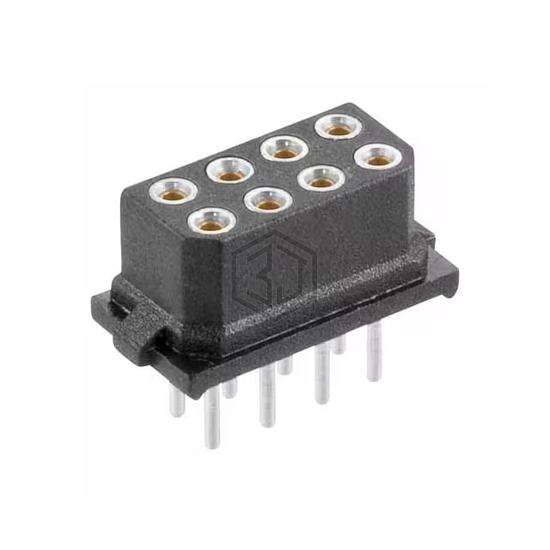

4+4 POS. FEMALE DIL
B5741-208-F-T-0 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Harwin Inc.. 4+4 POS. FEMALE DIL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage rating 800VAC/DC, current rating (amps) 2.2A.
In Stock: 8,755
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 12.0µin (0.30µm) |
| Insulation Color | Black |
| Insulation Height | 0.202" (5.14mm) |
| Contact Length - Post | 0.118" (3.00mm) |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin-Lead |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 2.2A |
| Voltage Rating | 800VAC/DC |
Submit your RFQ for B5741-208-F-T-0 and get a quote within 24 hours.
