LED RGB FULL COLOR (2.0(L)X1.3(

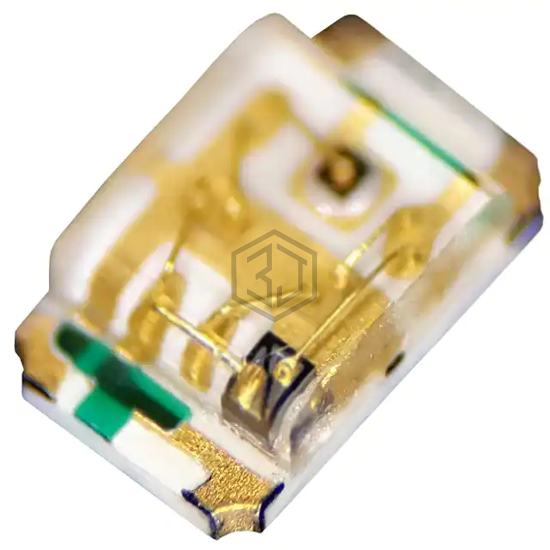

E3743FCH-20D0001H2U1930 is a LED Indication - Discrete manufactured by Harvatek Corporation. LED RGB FULL COLOR (2.0(L)X1.3(. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2V Red, 3.3V Green, 3.3V Blue, package / case 0805 (2012 Metric), color Red, Green, Blue (RGB).
In Stock: 6,701
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | - |
| Lens Transparency | - |
| Millicandela Rating | 112.5mcd Red, 285mcd Green, 71.5mcd Blue |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.40mm x 1.30mm |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3.3V Green, 3.3V Blue |
| Current - Test | - |
| Viewing Angle | 130° Red, 120° Green, 128° Blue |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 624nm Red, 525nm Green, 470nm Blue |
| Wavelength - Peak | 632nm Red, 520nm Green, 468nm Blue |
| Features | - |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Size / Dimension | 2.00mm L x 1.30mm W |
| Height (Max) | 0.60mm |
