RGB LEDS

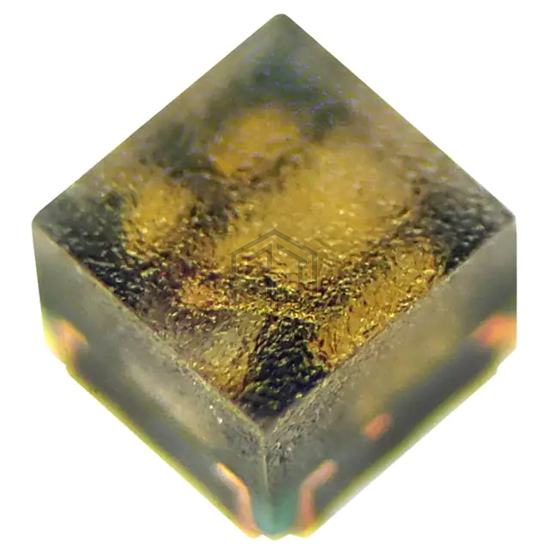

B3C73RBG02D0006H4U1930 is a LED Indication - Discrete manufactured by Harvatek Corporation. RGB LEDS. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 1.8V Red, 2.6V Green, 2.6V Blue, supplier device package Chip LED, color Red, Green, Blue (RGB).
In Stock: 3,868
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | - |
| Lens Transparency | - |
| Millicandela Rating | 225mcd |
| Lens Style | Square with Flat Top |
| Lens Size | 1.08mm x 1.08mm |
| Voltage - Forward (Vf) (Typ) | 1.8V Red, 2.6V Green, 2.6V Blue |
| Current - Test | 2mA Red, 2mA Green, 2mA Blue |
| Viewing Angle | - |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | - |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | - |
| Supplier Device Package | Chip LED |
| Size / Dimension | 1.08mm L x 1.08mm W |
| Height (Max) | 0.35mm |
Submit your RFQ for B3C73RBG02D0006H4U1930 and get a quote within 24 hours.
