LED RGB FULL COLOR (1.6(L)X1.6(

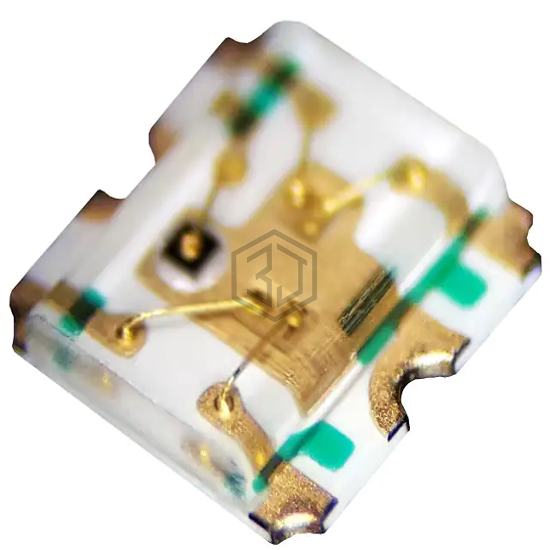

B3803FCH-20C001112U1930 is a LED Indication - Discrete manufactured by Harvatek Corporation. LED RGB FULL COLOR (1.6(L)X1.6(. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2V Red, 3V Green, 3V Blue, package / case 6-SMD, No Lead, color Red, Green, Blue (RGB).
In Stock: 12,385
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Independent |
| Lens Color | - |
| Lens Transparency | - |
| Millicandela Rating | 285mcd Red, 900mcd Green, 180mcd Blue |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.60mm x 1.15mm |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3V Green, 3V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | - |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 624nm Red, 525nm Green, 470nm Blue |
| Wavelength - Peak | 632nm Red, 520nm Green, 468nm Blue |
| Features | - |
| Package / Case | 6-SMD, No Lead |
| Supplier Device Package | Chip LED |
| Size / Dimension | 1.60mm L x 1.60mm W |
| Height (Max) | 0.40mm |
Submit your RFQ for B3803FCH-20C001112U1930 and get a quote within 24 hours.
