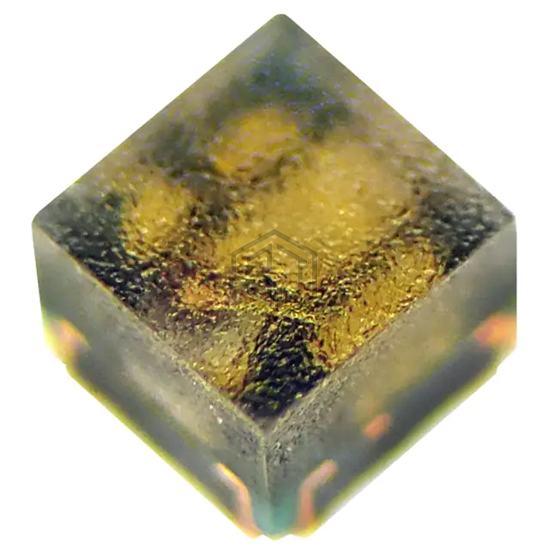

LED RGB COMMON CATHODE (0.65(L)X
B36L3RGB-F6C0001HOU1930 is a LED Indication - Discrete manufactured by Harvatek Corporation. LED RGB COMMON CATHODE (0.65(L)X. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 1.9V Red, 2.5V Green, 2.5V Blue, package / case 4-SMD, No Lead, color Red, Green, Blue (RGB).
In Stock: 22,619
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Cathode |
| Lens Color | - |
| Lens Transparency | - |
| Millicandela Rating | 32mcd Red, 46mcd Green, 8mcd Blue |
| Lens Style | Square with Flat Top |
| Lens Size | 0.65mm |
| Voltage - Forward (Vf) (Typ) | 1.9V Red, 2.5V Green, 2.5V Blue |
| Current - Test | 5mA Red, 2mA Green, 2mA Blue |
| Viewing Angle | 140° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 621nm Red, 530nm Green, 469nm Blue |
| Wavelength - Peak | 628nm Red, 521nm Green, 465nm Blue |
| Features | - |
| Package / Case | 4-SMD, No Lead |
| Supplier Device Package | Chip LED |
| Size / Dimension | 0.65mm L x 0.65mm W |
| Height (Max) | 0.60mm |
