LED RGB FULL COLOR (2.70(L)X1.3

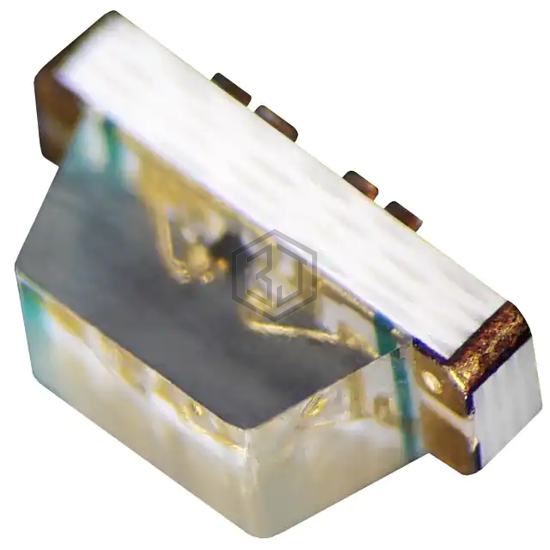

B3213GBR-05C0002Q3U1930 is a LED Indication - Discrete manufactured by Harvatek Corporation. LED RGB FULL COLOR (2.70(L)X1.3. Key specifications: mounting type Surface Mount, Right Angle, voltage - forward (vf) (typ) 1.9V Red, 2.9V Green, 2.9V Blue, package / case 4-SMD, No Lead, color Red, Green, Blue (RGB).
In Stock: 18,185
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | - |
| Lens Transparency | - |
| Millicandela Rating | 33.5mcd Red, 129mcd Green, 33.5mcd Blue |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.10mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 1.9V Red, 2.9V Green, 2.9V Blue |
| Current - Test | 5mA Red, 5mA Green, 5mA Blue |
| Viewing Angle | 130° |
| Mounting Type | Surface Mount, Right Angle |
| Wavelength - Dominant | 620nm Red, 532nm Green, 470nm Blue |
| Wavelength - Peak | 628nm Red, 522nm Green, 466nm Blue |
| Features | - |
| Package / Case | 4-SMD, No Lead |
| Supplier Device Package | Chip LED |
| Size / Dimension | 2.70mm L x 1.35mm W |
| Height (Max) | 0.90mm |
Submit your RFQ for B3213GBR-05C0002Q3U1930 and get a quote within 24 hours.
