1.6(L)X0.8(W)X0.5(H) MM ORANGE/Y

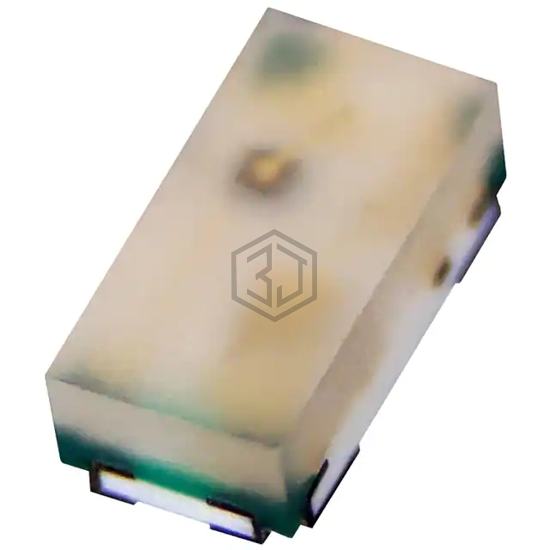

B2972UDUG20D000214U1930 is a LED Indication - Discrete manufactured by Harvatek Corporation. 1.6(L)X0.8(W)X0.5(H) MM ORANGE/Y. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2V Orange, 2.1V Yellow-Green, package / case 0603 (1608 Metric), color Orange, Yellow-Green.
In Stock: 11,496
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Orange, Yellow-Green |
| Configuration | Independent |
| Lens Color | - |
| Lens Transparency | Diffused |
| Millicandela Rating | 71.5mcd Orange, 71.5mcd Yellow-Green |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.60mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 2V Orange, 2.1V Yellow-Green |
| Current - Test | 20mA |
| Viewing Angle | 140° Orange, 160° Yellow-Green |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 605nm Orange, 571nm Yellow-Green |
| Wavelength - Peak | 611nm Orange, 573nm Yellow-Green |
| Features | - |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Height (Max) | 0.60mm |
Submit your RFQ for B2972UDUG20D000214U1930 and get a quote within 24 hours.
