3.2(L)X1.2(W)X0.8(H) MM RED/BLUE

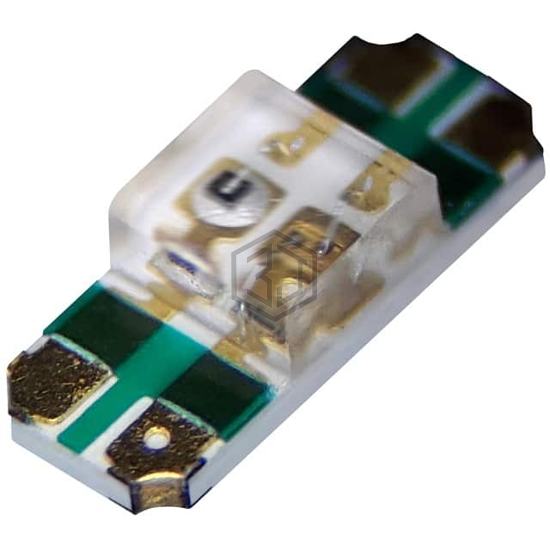

B2632USNB20C000323U1930 is a LED Indication - Discrete manufactured by Harvatek Corporation. 3.2(L)X1.2(W)X0.8(H) MM RED/BLUE. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 3.3V Blue, 2V Red, package / case 1205 (3212 Metric), color Blue, Red.
In Stock: 14,975
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Blue, Red |
| Configuration | Independent |
| Lens Color | - |
| Lens Transparency | Clear |
| Millicandela Rating | 45mcd Blue, 71.5mcd Red |
| Lens Style | Square with Flat Top |
| Lens Size | 1.20mm |
| Voltage - Forward (Vf) (Typ) | 3.3V Blue, 2V Red |
| Current - Test | 20mA |
| Viewing Angle | 130° Blue, 130° Red |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 470nm Blue, 624nm Red |
| Wavelength - Peak | 468nm Blue, 632nm Red |
| Features | - |
| Package / Case | 1205 (3212 Metric) |
| Supplier Device Package | 1205 |
| Size / Dimension | 3.20mm L x 1.20mm W |
| Height (Max) | 0.90mm |
Submit your RFQ for B2632USNB20C000323U1930 and get a quote within 24 hours.
