1.6 (L) X 1.5 (W) X 0.55 (H) MM

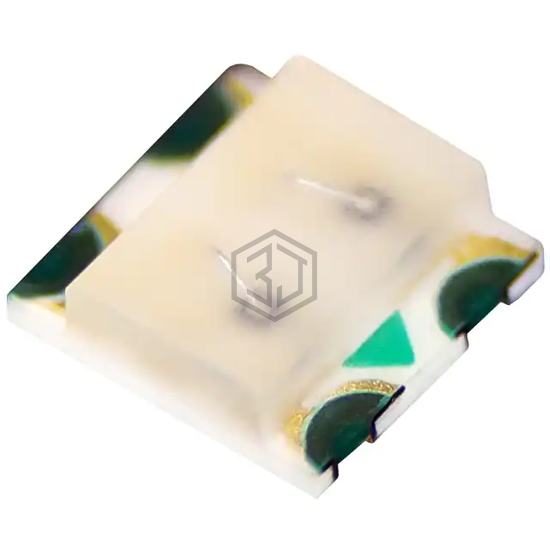

B2612USUG20D000312U1930 is a LED Indication - Discrete manufactured by Harvatek Corporation. 1.6 (L) X 1.5 (W) X 0.55 (H) MM. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2V Red, 2.1V Yellow-Green, package / case 0606 (1616 Metric), color Red, Yellow-Green.
In Stock: 9,600
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Yellow-Green |
| Configuration | Independent |
| Lens Color | - |
| Lens Transparency | Diffused |
| Millicandela Rating | 71.5mcd Red, 45mcd Yellow-Green |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.50mm x 1.10mm |
| Voltage - Forward (Vf) (Typ) | 2V Red, 2.1V Yellow-Green |
| Current - Test | 20mA |
| Viewing Angle | 140° Red, 140° Yellow-Green |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 624nm Red, 571nm Yellow-Green |
| Wavelength - Peak | 632nm Red, 573nm Yellow-Green |
| Features | - |
| Package / Case | 0606 (1616 Metric) |
| Supplier Device Package | 0606 |
| Size / Dimension | 1.60mm L x 1.50mm W |
| Height (Max) | 0.65mm |
