1.6 (L) X 1.5 (W) X 0.55 (H) MM

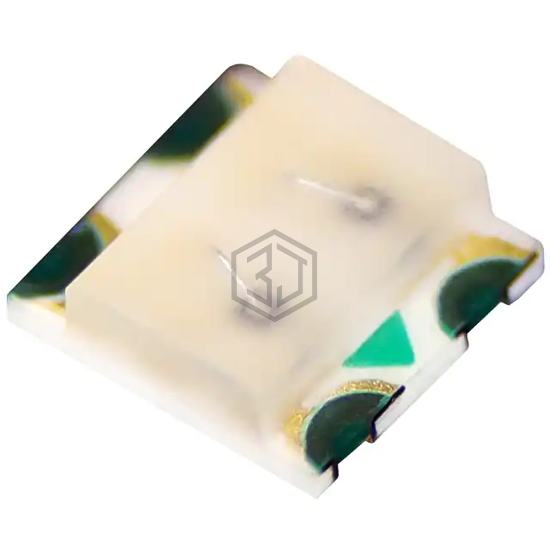

B2612UDNB05D000512U1930 is a LED Indication - Discrete manufactured by Harvatek Corporation. 1.6 (L) X 1.5 (W) X 0.55 (H) MM. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2V Orange, 2.8V Blue, package / case 0606 (1616 Metric), color Blue, Orange.
In Stock: 8,878
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Blue, Orange |
| Configuration | Independent |
| Lens Color | - |
| Lens Transparency | Diffused |
| Millicandela Rating | 28.5mcd Orange, 18mcd Blue |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.50mm x 1.10mm |
| Voltage - Forward (Vf) (Typ) | 2V Orange, 2.8V Blue |
| Current - Test | 5mA |
| Viewing Angle | 140° Orange, 140° Blue |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 605nm Orange, 472nm Blue |
| Wavelength - Peak | 611nm Orange, 470nm Blue |
| Features | - |
| Package / Case | 0606 (1616 Metric) |
| Supplier Device Package | 0606 |
| Size / Dimension | 1.60mm L x 1.50mm W |
| Height (Max) | 0.65mm |
Submit your RFQ for B2612UDNB05D000512U1930 and get a quote within 24 hours.
