3.2 (L) X 1.6 (W) X 2.55 (H) MM

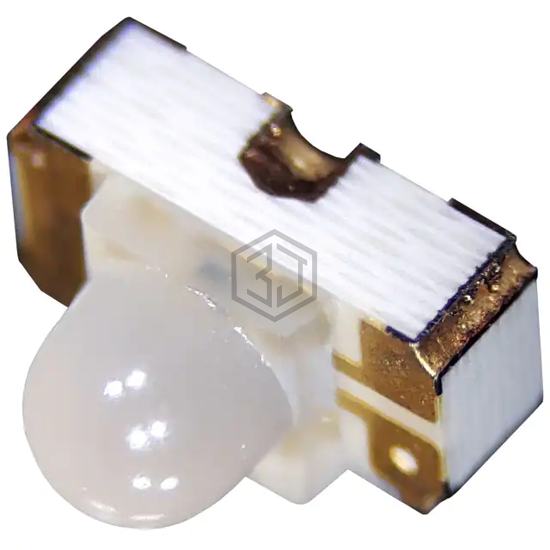

B2592USNG20D0001L2U1930 is a LED Indication - Discrete manufactured by Harvatek Corporation. 3.2 (L) X 1.6 (W) X 2.55 (H) MM. Key specifications: mounting type Surface Mount, Right Angle, voltage - forward (vf) (typ) 3.3V Green, 2V Red, package / case 1210 (3225 Metric), color Green, Red.
In Stock: 8,833
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Red |
| Configuration | Common Anode |
| Lens Color | - |
| Lens Transparency | Diffused |
| Millicandela Rating | 285mcd Green, 285mcd Red |
| Lens Style | Round with Domed Top |
| Lens Size | - |
| Voltage - Forward (Vf) (Typ) | 3.3V Green, 2V Red |
| Current - Test | 20mA |
| Viewing Angle | 120° Green, 140° Red |
| Mounting Type | Surface Mount, Right Angle |
| Wavelength - Dominant | 525nm Green, 624nm Red |
| Wavelength - Peak | 520nm Green, 632nm Red |
| Features | - |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | 1210 |
| Size / Dimension | 3.20mm L x 2.55mm W |
| Height (Max) | 1.70mm |
Submit your RFQ for B2592USNG20D0001L2U1930 and get a quote within 24 hours.
