3.2(L)X1.5(W)X1.0(H) MM RED/ YEL

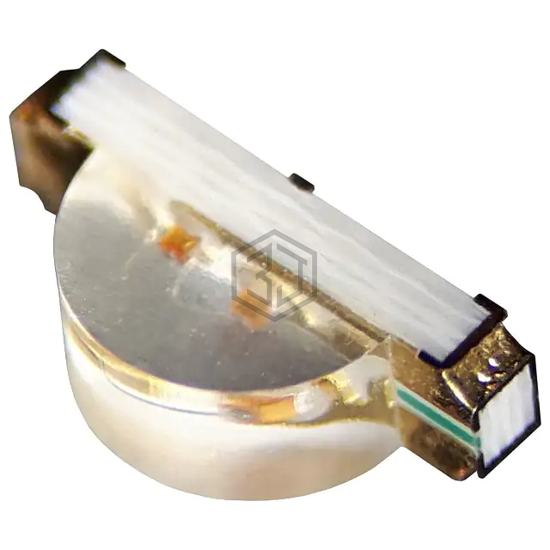

B2102USUG20C000633U1930 is a LED Indication - Discrete manufactured by Harvatek Corporation. 3.2(L)X1.5(W)X1.0(H) MM RED/ YEL. Key specifications: mounting type Surface Mount, Right Angle, voltage - forward (vf) (typ) 2V Red, 2.1V Yellow-Green, package / case 1206 (3216 Metric), color Red, Yellow-Green.
In Stock: 14,193
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Yellow-Green |
| Configuration | Independent |
| Lens Color | - |
| Lens Transparency | Clear |
| Millicandela Rating | 71.5mcd Red, 45mcd Yellow-Green |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm |
| Voltage - Forward (Vf) (Typ) | 2V Red, 2.1V Yellow-Green |
| Current - Test | 20mA |
| Viewing Angle | 130° Red, 124° Yellow-Green |
| Mounting Type | Surface Mount, Right Angle |
| Wavelength - Dominant | 624nm Red, 571nm Yellow-Green |
| Wavelength - Peak | 632nm Red, 573nm Yellow-Green |
| Features | - |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Size / Dimension | 3.20mm L x 1.50mm W |
| Height (Max) | 1.10mm |
Submit your RFQ for B2102USUG20C000633U1930 and get a quote within 24 hours.
