2.0(L)X1.3(W)X0.5 (H) MM RED/ YE

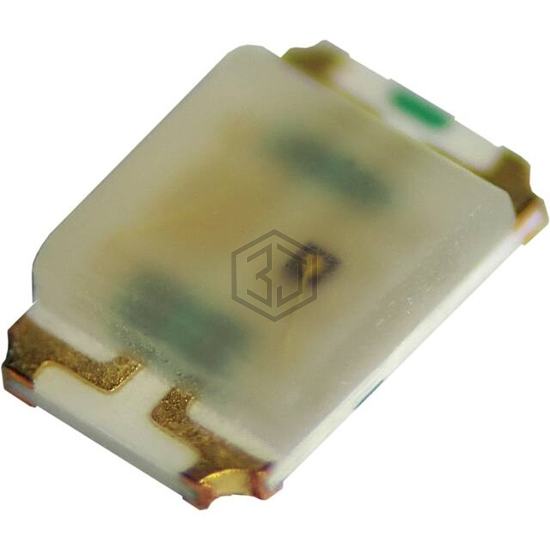

B17T2USUG20D000114U1930 is a LED Indication - Discrete manufactured by Harvatek Corporation. 2.0(L)X1.3(W)X0.5 (H) MM RED/ YE. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2V Red, 2.1V Yellow-Green, package / case 0805 (2012 Metric), color Red, Yellow-Green.
In Stock: 19,734
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Yellow-Green |
| Configuration | Independent |
| Lens Color | - |
| Lens Transparency | Diffused |
| Millicandela Rating | 71.5mcd Red, 45mcd Yellow-Green |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.40mm x 1.30mm |
| Voltage - Forward (Vf) (Typ) | 2V Red, 2.1V Yellow-Green |
| Current - Test | 20mA |
| Viewing Angle | 120° Red, 125° Yellow-Green |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 624nm Red, 571nm Yellow-Green |
| Wavelength - Peak | 632nm Red, 573nm Yellow-Green |
| Features | - |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Size / Dimension | 2.00mm L x 1.30mm W |
| Height (Max) | 0.60mm |
Submit your RFQ for B17T2USUG20D000114U1930 and get a quote within 24 hours.
