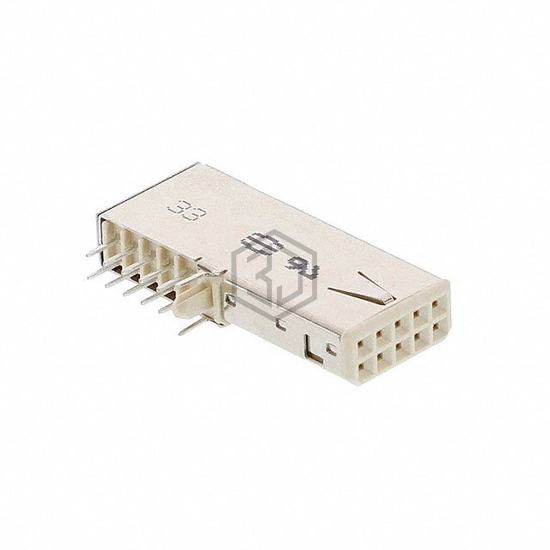

CONN 10POS 0.079 GOLD PCB R/A
27211218000 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by HARTING. CONN 10POS 0.079 GOLD PCB R/A. Key specifications: mounting type Through Hole, Right Angle, operating temperature -55°C ~ 125°C, current rating (amps) 1.5A, termination Solder.
In Stock: 1,109
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | - |
| Contact Type | Female Socket |
| Style | Board to Cable/Wire |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Insulation Color | Natural |
| Insulation Height | 0.453" (11.50mm) |
| Contact Length - Post | 0.114" (2.90mm) |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | - |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Board Guide, Shielding Pins |
| Current Rating (Amps) | 1.5A |
| Voltage Rating | - |
