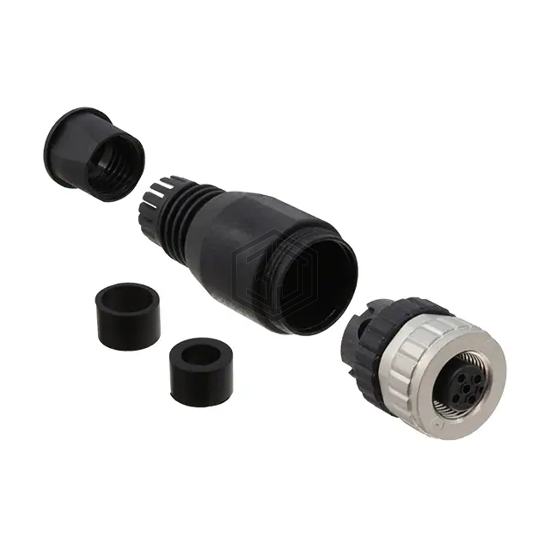

CONN PLUG FMALE 4POS GOLD SCREW
21033192401 is a Circular Connectors manufactured by HARTING. CONN PLUG FMALE 4POS GOLD SCREW. Key specifications: mounting type Free Hanging (In-Line), operating temperature -30°C ~ 85°C, voltage rating 250V, color Black, Silver.
In Stock: 7,761
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Female Sockets |
| Number of Positions | 4 |
| Shell Size - Insert | M12-4 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Screw |
| Fastening Type | Threaded |
| Orientation | A |
| Primary Material | Metal |
| Shell Material | Zinc Die Cast |
| Shell Finish | - |
| Contact Finish - Mating | Gold |
| Color | Black, Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | - |
| Features | Backshell, Coupling Nut |
| Shielding | Unshielded |
| Current Rating (Amps) | 7.5A |
| Voltage Rating | 250V |
| Cable Opening | 0.157" ~ 0.315" (4.00mm ~ 8.00mm) |
| Operating Temperature | -30°C ~ 85°C |
Submit your RFQ for 21033192401 and get a quote within 24 hours.
