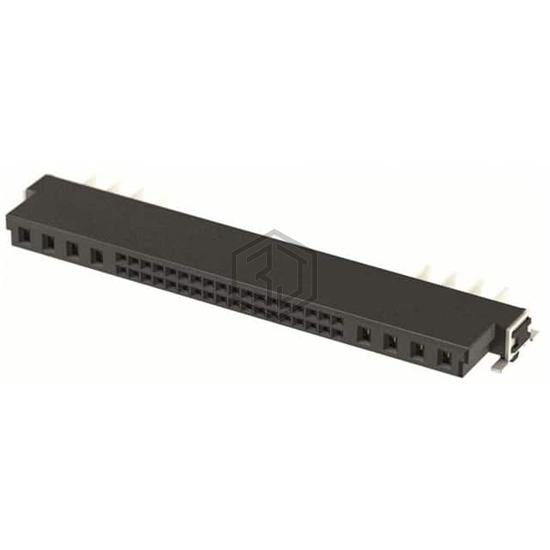

HAR-FLEX HYBRID ANGLED FEMALE, 8
15858362701000 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by HARTING. HAR-FLEX HYBRID ANGLED FEMALE, 8. Key specifications: mounting type Surface Mount, Right Angle; Through Hole, operating temperature -55°C ~ 125°C, voltage rating 50VAC, 120VDC, current rating (amps) 21.5A.
In Stock: 397
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 44 (36 + 8 Power) |
| Number of Positions Loaded | All |
| Pitch - Mating | - |
| Number of Rows | 2 |
| Row Spacing - Mating | - |
| Mounting Type | Surface Mount, Right Angle; Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Insulation Color | Black |
| Insulation Height | 0.120" (3.05mm) |
| Contact Length - Post | 0.087" (2.20mm) |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Board Guide, Solder Retention |
| Current Rating (Amps) | 21.5A |
| Voltage Rating | 50VAC, 120VDC |
Submit your RFQ for 15858362701000 and get a quote within 24 hours.
