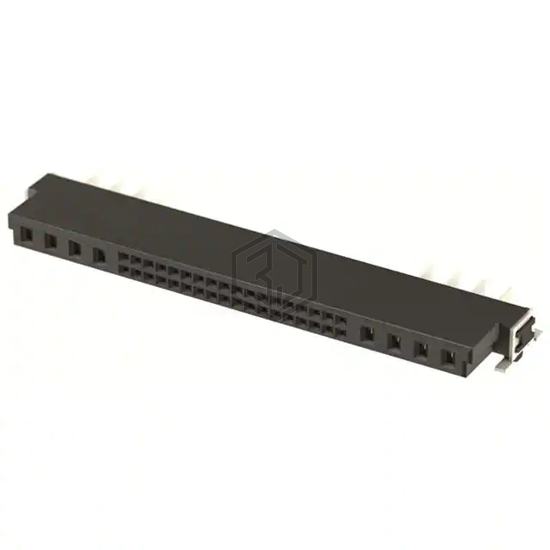

15858362601000 - HARTING - Rectangular Connectors - Headers, Receptacles, Female Sockets

15858362601000

HARTING

HAR-FLEX HYBRID ANGLED FEMALE, 8

15858362601000 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by HARTING. HAR-FLEX HYBRID ANGLED FEMALE, 8. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -55°C ~ 125°C, voltage rating 50VAC, 120VDC, current rating (amps) 22.5A.

In Stock: 400

Product Attributes

AttributeValue
Product StatusActive
Connector TypeReceptacle
Contact TypeFemale Socket
StyleBoard to Board or Cable
Number of Positions44 (36 + 8 Power)
Number of Positions LoadedAll
Pitch - Mating-
Number of Rows2
Row Spacing - Mating-
Mounting TypeSurface Mount, Right Angle
TerminationSolder
Fastening TypePush-Pull
Contact Finish - MatingGold
Contact Finish Thickness - Mating-
Insulation ColorBlack
Insulation Height0.144" (3.66mm)
Contact Length - Post-
Operating Temperature-55°C ~ 125°C
Material Flammability RatingUL94 V-0
Contact Finish - PostTin
Mated Stacking Heights-
Ingress Protection-
FeaturesBoard Guide, Solder Retention
Current Rating (Amps)22.5A
Voltage Rating50VAC, 120VDC

Frequently Asked Questions

15858362601000 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by HARTING. HAR-FLEX HYBRID ANGLED FEMALE, 8

The mounting type of 15858362601000 is Surface Mount, Right Angle.

The operating temperature range of 15858362601000 is -55°C ~ 125°C.

The supply voltage of 15858362601000 is 50VAC, 120VDC.
