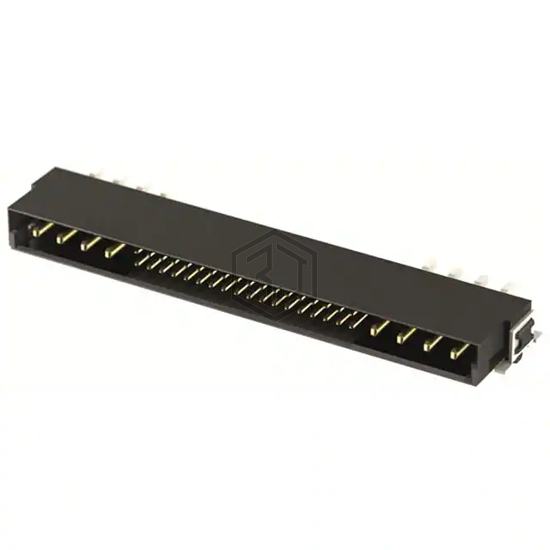

HAR-FLEX HYBRID ANGLED MALE, 2P+
15758362601000 is a Rectangular Connectors - Headers, Male Pins manufactured by HARTING. HAR-FLEX HYBRID ANGLED MALE, 2P+. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -55°C ~ 125°C, voltage rating 50VAC, 120VDC, contact material Copper Alloy.
In Stock: 380
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Blade; Male Pin |
| Pitch - Mating | - |
| Number of Positions | 44 (36 + 8 Power) |
| Number of Rows | 2 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.167" (4.24mm) |
| Contact Shape | Rectangular, Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | Board Guide, Solder Retention |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 22.5A |
| Voltage Rating | 50VAC, 120VDC |
Submit your RFQ for 15758362601000 and get a quote within 24 hours.
