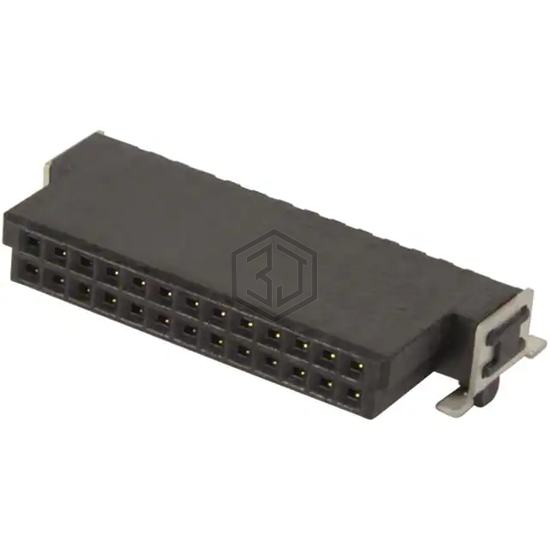

HAR-FLEX ANGLED FEMALE, 18PIN, P
15250182601000 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by HARTING. HAR-FLEX ANGLED FEMALE, 18PIN, P. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -55°C ~ 125°C, termination Solder, number of positions 18.
In Stock: 1,120
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 18 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | - |
| Contact Finish Thickness - Mating | - |
| Insulation Color | Black |
| Insulation Height | 0.120" (3.05mm) |
| Contact Length - Post | - |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Board Guide, Solder Retention |
| Current Rating (Amps) | - |
| Voltage Rating | - |
