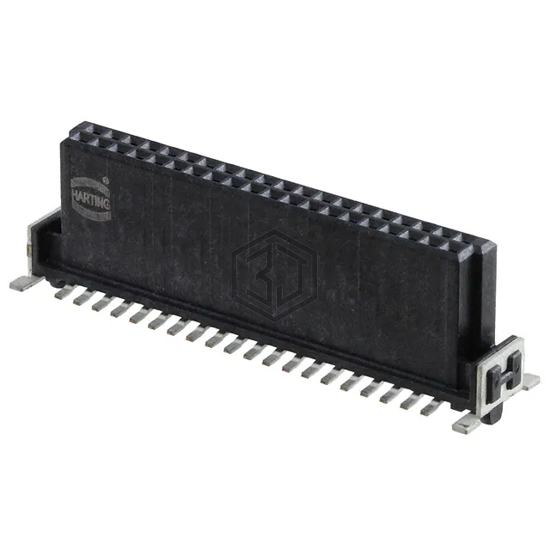

CONN RCPT 40POS 0.05 GOLD SMD
15220402601000 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by HARTING. CONN RCPT 40POS 0.05 GOLD SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, termination Solder, number of positions 40.
In Stock: 1,116
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 40 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Insulation Color | Black |
| Insulation Height | 0.356" (9.05mm) |
| Contact Length - Post | - |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | 10.8mm ~ 13.8mm |
| Ingress Protection | - |
| Features | Board Guide, Pick and Place, Solder Retention |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 15220402601000 and get a quote within 24 hours.
