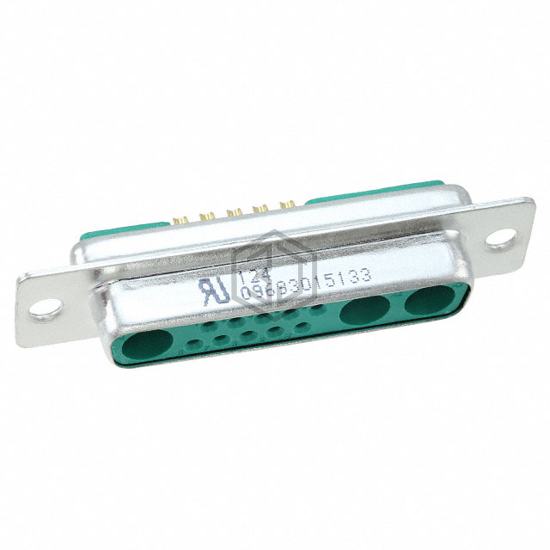

CONN D-SUB RCPT 13POS SLDR CUP
09693015133 is a D-Sub Connectors manufactured by HARTING. CONN D-SUB RCPT 13POS SLDR CUP. Key specifications: mounting type Free Hanging (In-Line), current rating (amps) 5A, termination Solder Cup, number of positions 13 (10 + 3 Coax or Power).
In Stock: 40
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 13 (10 + 3 Coax or Power) |
| Number of Rows | 2 |
| Mounting Type | Free Hanging (In-Line) |
| Shell Size, Connector Layout | 3 (DB, B) - 13C3, 13W3 |
| Contact Type | Signal and Coax or Power (Not Included) |
| Flange Feature | Housing/Shell (Unthreaded) |
| Termination | Solder Cup |
| Primary Material | - |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold or Gold-Palladium |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 5A |
| Backset Spacing | - |
| Features | - |
Submit your RFQ for 09693015133 and get a quote within 24 hours.
