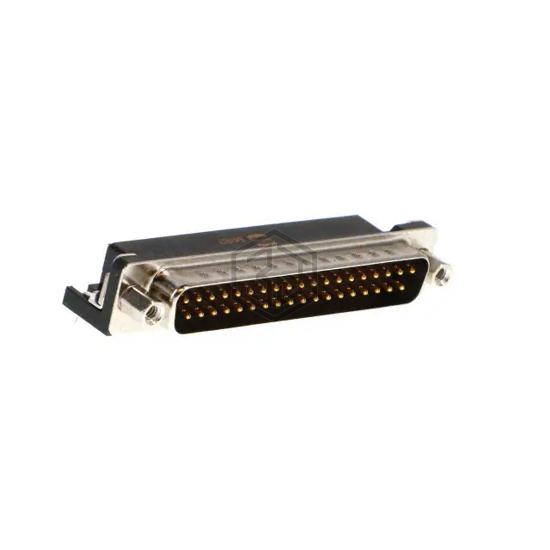

CONN D-SUB PLUG 37POS R/A SLDR
09684635813 is a D-Sub Connectors manufactured by HARTING. CONN D-SUB PLUG 37POS R/A SLDR. Key specifications: mounting type Through Hole, Right Angle, current rating (amps) 6.5A, termination Solder, number of positions 37.
In Stock: 29
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Mounting Type | Through Hole, Right Angle |
| Shell Size, Connector Layout | 4 (DC, C) |
| Contact Type | Signal |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel |
| Contact Finish | Gold or Gold-Palladium |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 6.5A |
| Backset Spacing | 0.318" (8.08mm) |
| Features | Board Lock, Grounding Indents |
