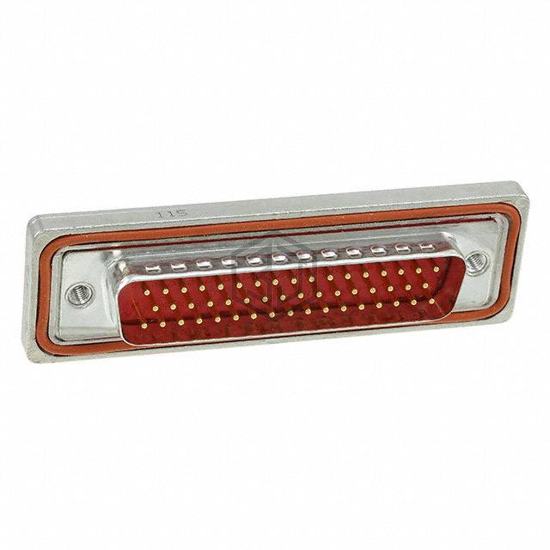

CONN D-SUB PLUG 50P PNL MNT SLDR
09676509675 is a D-Sub Connectors manufactured by HARTING. CONN D-SUB PLUG 50P PNL MNT SLDR. Key specifications: mounting type Panel Mount, Through Hole, current rating (amps) 5A, termination Solder, ingress protection IP67 - Dust Tight, Waterproof.
In Stock: 7
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Number of Positions | 50 |
| Number of Rows | 3 |
| Mounting Type | Panel Mount, Through Hole |
| Shell Size, Connector Layout | 5 (DD, D) |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (M3) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Brass, Tin Plated |
| Contact Finish | Gold or Gold-Palladium |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 5A |
| Backset Spacing | - |
| Features | Board Lock, Grounding Indents |
Submit your RFQ for 09676509675 and get a quote within 24 hours.
