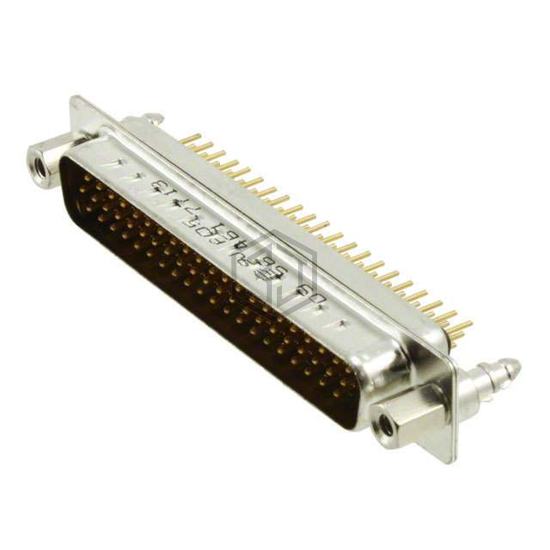

CONN D-SUB HD PLUG 62P VERT SLDR
09564615713 is a D-Sub Connectors manufactured by HARTING. CONN D-SUB HD PLUG 62P VERT SLDR. Key specifications: mounting type Through Hole, current rating (amps) 2A, termination Solder, number of positions 62.
In Stock: 38
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, High Density |
| Connector Type | Plug, Male Pins |
| Number of Positions | 62 |
| Number of Rows | 3 |
| Mounting Type | Through Hole |
| Shell Size, Connector Layout | 4 (DC, C) High Density |
| Contact Type | Signal |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish | Gold or Gold-Palladium |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 2A |
| Backset Spacing | - |
| Features | Board Lock, Grounding Indents |
