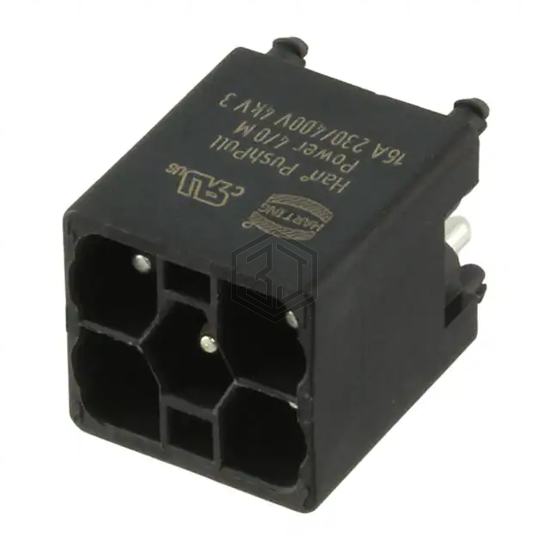

CONN HEADER VERT 5POS
09350023004 is a Rectangular Connectors - Headers, Male Pins manufactured by HARTING. CONN HEADER VERT 5POS. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 70°C, voltage rating 690V, current rating (amps) 16A.
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Insert |
| Contact Type | Male Pin |
| Pitch - Mating | - |
| Number of Positions | 5 |
| Number of Rows | - |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.673" (17.10mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | - |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - |
| Contact Material | - |
| Insulation Material | Thermoplastic |
| Features | Board Lock |
| Operating Temperature | -40°C ~ 70°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 16A |
| Voltage Rating | 690V |
