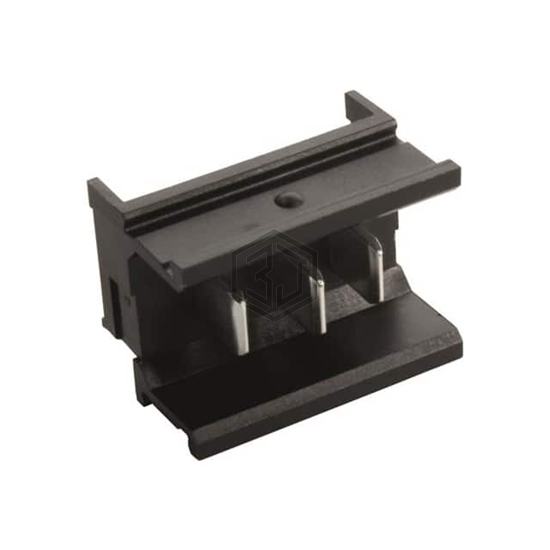

3 POSITION 15A STRAIGHT MALE
02539031301 is a Rectangular Connectors - Headers, Male Pins manufactured by HARTING. 3 POSITION 15A STRAIGHT MALE. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, contact material Copper Alloy, current rating (amps) 15A.
In Stock: 100
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Blade |
| Pitch - Mating | 0.200" (5.08mm) |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 2 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | - |
| Contact Length - Post | 0.189" (4.80mm) |
| Overall Contact Length | - |
| Insulation Height | 0.494" (12.55mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Silver |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - |
| Contact Material | Copper Alloy |
| Insulation Material | Polyamide (PA), Nylon |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 15A |
| Voltage Rating | - |
Submit your RFQ for 02539031301 and get a quote within 24 hours.
