4 POSITION 6A STRAIGHT FEMALE

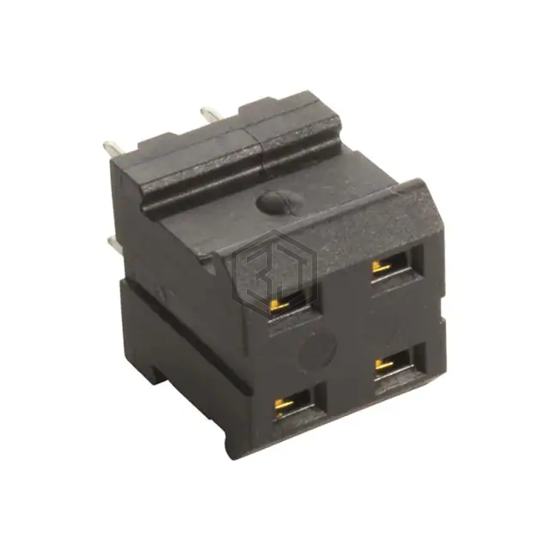

02529041201 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by HARTING. 4 POSITION 6A STRAIGHT FEMALE. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, current rating (amps) 6A, termination Solder.
In Stock: 46
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.200" (5.08mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.200" (5.08mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Insulation Color | Black |
| Insulation Height | 0.455" (11.56mm) |
| Contact Length - Post | 0.177" (4.50mm) |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 6A |
| Voltage Rating | - |
Submit your RFQ for 02529041201 and get a quote within 24 hours.
