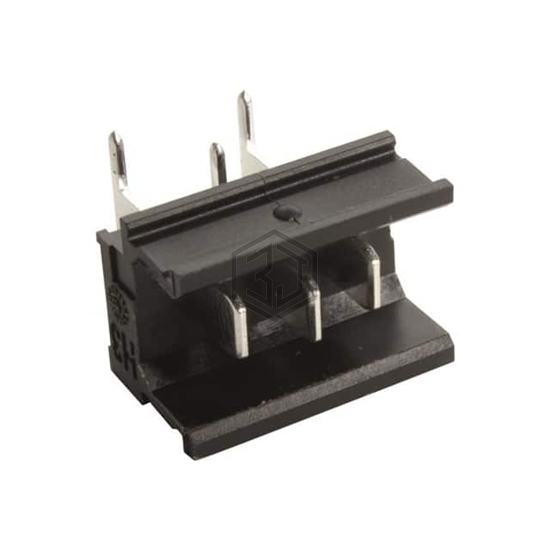

3POSITION 15A ANGLED MALE
02519031301 is a Rectangular Connectors - Headers, Male Pins manufactured by HARTING. 3POSITION 15A ANGLED MALE. Key specifications: mounting type Through Hole, Right Angle, operating temperature -55°C ~ 125°C, contact material Copper Alloy, current rating (amps) 15A.
In Stock: 32
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Blade |
| Pitch - Mating | 0.200" (5.08mm) |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 2 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | - |
| Contact Length - Post | 0.110" (2.80mm) |
| Overall Contact Length | - |
| Insulation Height | 0.579" (14.70mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Silver |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - |
| Contact Material | Copper Alloy |
| Insulation Material | Polyamide (PA), Nylon |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 15A |
| Voltage Rating | - |
