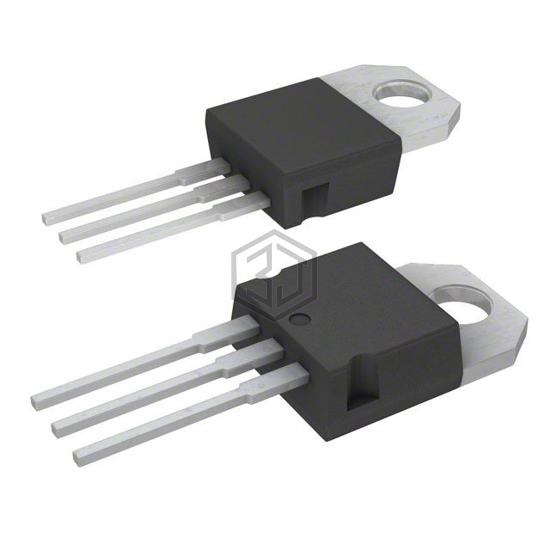

IRF630
MOSFET N-CH 200V 9A TO220AB
IRF630 is a Transistors - FETs, MOSFETs - Single manufactured by Harris Corporation. MOSFET N-CH 200V 9A TO220AB. Key specifications: mounting type Through Hole, package / case TO-220-3.
In Stock: 23,207
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 200 V |
| Current - Continuous Drain (Id) @ 25°C | 9A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - |
| Rds On (Max) @ Id, Vgs | 400mOhm @ 5.4A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 43 nC @ 10 V |
| Vgs (Max) | - |
| Input Capacitance (Ciss) (Max) @ Vds | 800 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | - |
| Operating Temperature | - |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220AB |
| Package / Case | TO-220-3 |
Frequently Asked Questions
IRF630 is a Transistors - FETs, MOSFETs - Single manufactured by Harris Corporation. MOSFET N-CH 200V 9A TO220AB
The mounting type of IRF630 is Through Hole.
The package type of IRF630 is TO-220-3.
Yes, IRF630 is listed as Obsolete. Consider requesting a quote for alternative parts.
