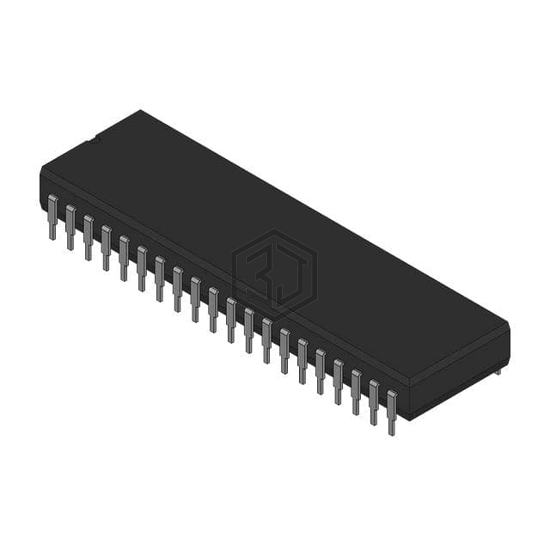

IC ADC 12BIT DUAL SLOPE 40DIP
ICL7109CPL is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Harris Corporation. IC ADC 12BIT DUAL SLOPE 40DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, voltage - supply, digital ±5V, package / case 40-DIP (0.600", 15.24mm).
In Stock: 152
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 30M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | Parallel |
| Configuration | ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Dual Slope |
| Reference Type | External |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | ±5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 40-DIP (0.600", 15.24mm) |
| Supplier Device Package | 40-PDIP |
| Mounting Type | Through Hole |
ICL7109CPL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ICL7109EPL+ | Analog Devices Inc./Maxim Integrated | IC ADC 12BIT DUAL SLOPE 40DIP | 100% | View |
| HI5813JIJ | Harris Corporation | SAMPLING ADC WITH T/H | 100% | View |
| MCP3201-CI/P | Microchip Technology | IC ADC 12BIT SAR 8DIP | 100% | View |
| AD7672LN10 | Analog Devices Inc. | 12-BIT SAR 2 CHANNEL ADC | 100% | View |
| MCP3301-BI/P | Microchip Technology | IC ADC 13BIT SAR 8DIP | 98% | View |
| CS5016-KP16 | Cirrus Logic Inc. | 16-BIT, SELF-CALIBRATING ADC | 94% | View |
Submit your RFQ for ICL7109CPL and get a quote within 24 hours.
