4-CHANNEL WIDEBAND AND VIDEO MUX

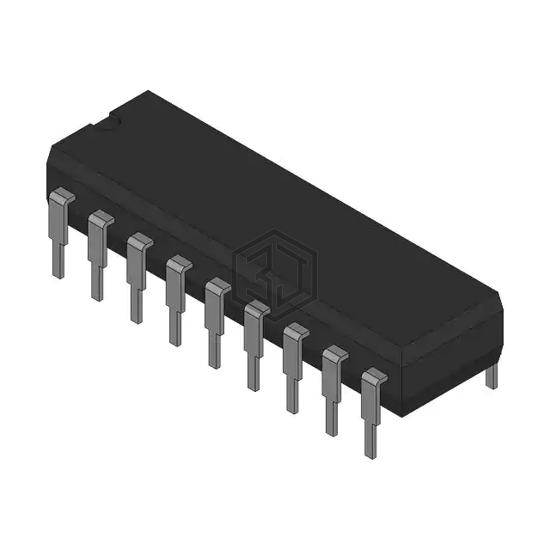

HI1-0524-2 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Harris Corporation. 4-CHANNEL WIDEBAND AND VIDEO MUX. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case 18-CDIP (0.300", 7.62mm), number of circuits 1.
In Stock: 425
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | 4PST - NO |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 700Ohm (Typ) |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 33V |
| Voltage - Supply, Dual (V±) | 33V |
| Switch Time (Ton, Toff) (Max) | 300ns, 250ns |
| -3db Bandwidth | 8MHz |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 4pF, 10pF |
| Current - Leakage (IS(off)) (Max) | 200pA (Typ) |
| Crosstalk | -65dB @ 10MHz |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | 18-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 18-CERDIP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HI1-0524/883 | Harris Corporation | 4-CHANNEL WIDEBAND AND VIDEO MUL | 100% | View |
| ADG506ATQ/883B | Analog Devices Inc. | IC MULTIPLEXER 16CH 28CDIP | 63% | View |
| 5962-89710013X | Analog Devices Inc. | IC MULTIPLEXER 16X1 28CLCC | 63% | View |
| ADG506ATQ | Analog Devices Inc. | IC MULTIPLEXER 16X1 28CDIP | 63% | View |
| 5962-8971001XX | Analog Devices Inc. | IC MULTIPLEXER 16X1 28CERDIP | 63% | View |
| ADG526ATQ | Analog Devices Inc. | IC MULTIPLEXER 16X1 28CDIP | 63% | View |
Submit your RFQ for HI1-0524-2 and get a quote within 24 hours.
