DIFFERENTIAL 4-CHANNEL, CMOS ANA

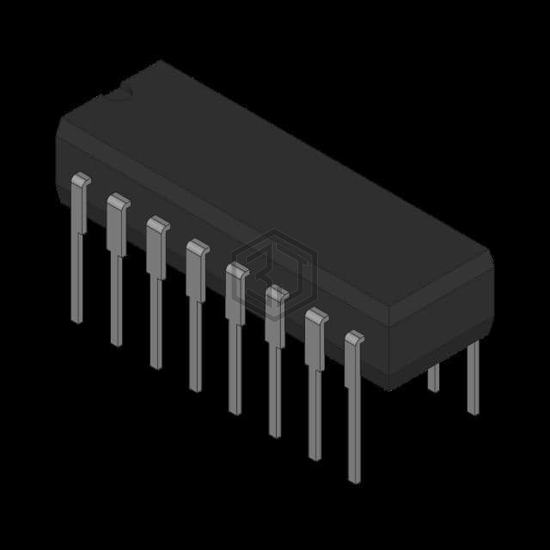

HI1-0509-5 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Harris Corporation. DIFFERENTIAL 4-CHANNEL, CMOS ANA. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 75°C (TA), package / case 16-CDIP (0.300", 7.62mm), number of circuits 2.
In Stock: 3,649
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 400Ohm |
| Channel-to-Channel Matching (ΔRon) | 20Ohm |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 500ns, 500ns |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 30pF |
| Current - Leakage (IS(off)) (Max) | 30pA (Typ) |
| Crosstalk | - |
| Operating Temperature | 0°C ~ 75°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CERDIP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HI3-0509A-5 | Harris Corporation | DIFFERENTIAL 4-CHANNEL, CMOS ANA | 100% | View |
| HI3-5041-5 | Harris Corporation | SPST ANALOG SWITCH, 2 CHANNEL | 74% | View |
| IH5018CPA | Harris Corporation | VIRTUAL GROUND ANALOG SWITCH | 67% | View |
| HI1-5050-8 | Harris Corporation | SPDT ANALOG SWITCH, 2 CHANNEL | 63% | View |
| HI1-5040-7 | Harris Corporation | SPST ANALOG SWITCH, 50 OHMS | 63% | View |
| HI1-5042-7 | Harris Corporation | SPDT ANALOG SWITCH, 50 OHMS | 63% | View |
Submit your RFQ for HI1-0509-5 and get a quote within 24 hours.
