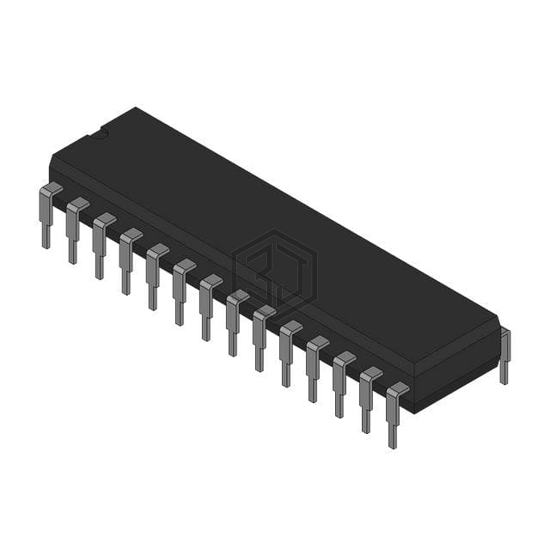

4-CHANNEL ANALOG MUX
HI1-0507A-5 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Harris Corporation. 4-CHANNEL ANALOG MUX. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 75°C, package / case 28-CDIP (0.600", 15.24mm), number of circuits 2.
In Stock: 154
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | 8PST |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 1.8kOhm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | ±15V |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 300ns (Typ), 300ns (Typ) |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 25pF |
| Current - Leakage (IS(off)) (Max) | 30pA (Typ) |
| Crosstalk | - |
| Operating Temperature | 0°C ~ 75°C |
| Mounting Type | Through Hole |
| Package / Case | 28-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 28-CDIP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HI1-0509A-7 | Harris Corporation | 4-CHANNEL ANALOG MUX | 89% | View |
| ADG527AKD | Analog Devices Inc. | LATCHED 8 CHANNEL ANALOG MUX | 75% | View |
| ADG506ATQ/883B | Analog Devices Inc. | IC MULTIPLEXER 16CH 28CDIP | 64% | View |
| ADG526AKNZ | Analog Devices Inc. | IC MULTIPLEXER 16X1 28DIP | 64% | View |
| ADG526ATQ | Analog Devices Inc. | IC MULTIPLEXER 16X1 28CDIP | 64% | View |
| DG212BDJ-E3 | Vishay Siliconix | IC SWITCH QUAD SPST 16DIP | 64% | View |
Submit your RFQ for HI1-0507A-5 and get a quote within 24 hours.
